A capable channel strip

The PreSonus Studio Channel is a specific type of audio hardware called a "channel strip". For those unfamiliar, this unit doesn't connect directly to your computer. Instead it takes audio sources such as microphones, line-level devices and musical instruments, and lets you shape them before they're recorded by your audio interface.

This compact 1U rack-mount device combines a tube preamp, a VCA compressor and a three-band EQ into a single unit. It's a decent proposition for multiple use cases, from smaller home recording studios to post production and even less demanding broadcast environments. A fairly comprehensive feature set makes it useful for musicians, podcasters, streamers and content creators seeking quality sound.

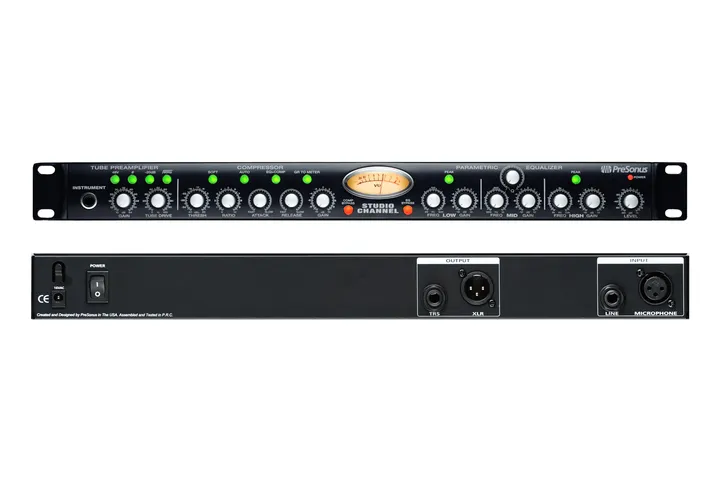

PreSonus Studio Channel tube channel strip front panel

The details

  • Preamp: Class A 12AX7 vacuum tube, +10dB to +54dB gain
  • Compressor: fully variable VCA with attack, release, ratio and threshold
  • EQ: three-band semi/fully parametric
  • Inputs: balanced XLR mic, balanced 1/4" line, unbalanced 1/4" instrument (front)
  • Outputs: balanced XLR and balanced 1/4" line
  • Format: 1U 19-inch rack-mount, rugged steel chassis
  • Power: 16V external adaptor
  • Weight: approximately 5lbs (2.3kg)
  • Amazon ASIN: B001N0LI3Y

The preamp: the sonic foundation

The heart of the Studio Channel is its Class A 12AX7 vacuum-tube microphone and instrument preamplifier, crucial for capturing pristine audio with character and warmth:

  • Tube Drive control for adding harmonic richness
  • 48V phantom power for condenser microphones
  • 80Hz high-pass filter to reduce low-end rumble
  • -20dB pad for high-output sources
  • Polarity reverse switch for phase correction

Compression and EQ

The VCA-based compressor gives real control over dynamics: attack, release, ratio and threshold, an auto attack/release switch, soft/hard knee options, makeup gain, and a backlit VU meter for watching gain reduction.

The three-band EQ pairs a fully parametric mid band (with variable Q) with semi-parametric high and low bands offering shelving or peak modes. You can route the EQ pre or post compressor, and bypass each stage independently.

Where it excels

  • Music recording: tracking vocals, guitars and instruments with tube warmth, and precise compression for consistent takes.
  • Podcasting and streaming: a clear vocal preamp, compression to hold levels steady, and EQ to bring out clarity and presence.
  • Content creation: simple, intuitive controls for anyone familiar with EQ and compression.

Where it's less suitable

  • Ultra-budget setups or complete beginners
  • Fully digital productions requiring perfect session recall
  • High-gain metal recording without additional gain staging

Honest limitations, and why this is four stars, not five

  • No gate. For a channel strip aimed at voice work, a noise gate is a real omission.
  • The EQ isn't as rich or musical as some boxes I've used. It does the job, but it won't flatter a source the way pricier strips can.
  • The compressor is functional rather than beautiful. It controls dynamics fine; it just isn't the best-sounding compression you'll hear.
  • The preamp is okay. Usable tube warmth, but this is a budget piece of kit and the sound quality shows its budget nature.
  • The external power supply keeps the cost down but might be inconvenient for some.
  • There's a learning curve if you've never worked with analogue processing before.

Verdict

The PreSonus Studio Channel offers musicians, voice actors, podcasters and content creators a genuinely useful all-in-one way to improve their sound before it ever reaches the interface. Judged as an entry-level channel strip at an entry-level price, it's a capable box and an easy recommendation. Judged purely on sound, it's good rather than great: the missing gate, the workmanlike EQ and compressor, and the okay-not-outstanding preamp are why it earns a solid four stars instead of five.
